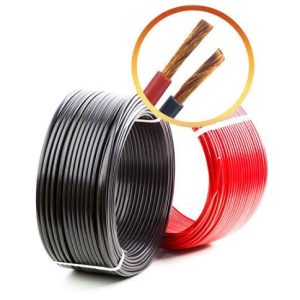

One 1 mm² class 5 core, 32 strands of 0.20 mm, PVC insulated and rated 1000 V DC. 10 A and 19.5 Ω/km, 44 mV/A/m across the go-and-return pair — DC always runs as two cores, positive and negative, and that figure counts both. This is the size solar shops and kit builders reach for on 12 V DC lighting and fans, on panel tails that draw more than the 6 A a 0.75mm core carries, and on the short battery-to-distribution hop: enough copper to be worth pulling, small enough that the run stays short. About 0.89 kg of copper in 100 m. Drawn on the Pilone line in Lahore.
Prices track the daily copper rate. Bulk and coil pricing on request.
Check the coil before you pay for it
Every coil leaves our factory with a QR code printed on the packaging. Scan it and the factory record for that batch opens: brand, cable size, batch number, year of manufacture and conductor. Compare the batch number on screen with the one printed on your coil — if the two do not match, it did not come from us.
| Property | Value |
|---|---|
| Conductor | Plain annealed copper, class 5 flexible stranded |
| Nominal area | 1 mm² × 1 core |
| Strand construction | 32 / 0.20 mm (typical) |
| Max conductor resistance at 20°C | 19.5 Ω/km |
| Current capacity (single conductor, DC reference) | 10 A |
| Voltage drop | 44 mV/A/m |
| Voltage rating | 1000 V DC |
| Insulation / sheath | PVC / PVC, 70°C conductor rating |
| Conductor copper weight | ≈ 8.9 kg/km |
| Reference standards | IEC 60228 (conductors), IEC 60227 (PVC cables) |
Shop and off-grid room circuits running straight off the battery. Keep the runs short — at 12 V the volt-drop budget is tiny.
Positive and negative leads on a single panel whose string current runs 7 to 9 A — past the 6 A the 0.75mm size carries, inside this cable's 10 A.
The short run from a battery or charge controller to a small DC distribution point, carrying real load current up to 10 A — a metre or two on a 12 V bank, further as the bank voltage rises.
The 10 A is the heat limit; on DC the length limit almost always arrives first. Volt drop is current × metres × 44 mV/A/m ÷ 1000, and DC work is normally designed to 3%. On a 12 V circuit 3% is 0.36 V, so a 4 A LED and fan load reaches 0.36 × 1000 ÷ (4 × 44) = 2.0 m before it is out of budget. Move the same load to a 48 V bank and 3% is 1.44 V, which buys 8.2 m. Put 4 A on a 100 V panel string and the budget is 3 V, worth 17 m. Same copper, three different answers — the system voltage is what changes them. Check yours on the voltage drop calculator, and for an array home run go up to 4mm DC cable or 6mm DC cable.
