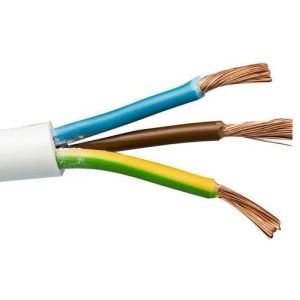

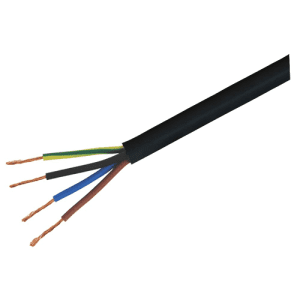

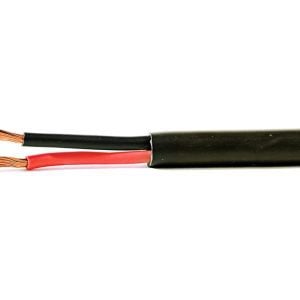

Stranded copper cable for wiring that has to bend. Each conductor is many fine strands instead of a few thick ones, so the cable stays flexible where a standard cable would be too rigid.
Drawn on the Pilone line in Lahore, 0.75 to 16 mm², in 2, 3 and 4 core. House wiring, appliance leads, panels, machinery, and portable equipment.
Each size has its own page with the full specification and the current factory rate.
Two core carries live and neutral. Three core adds an earth for appliances that need one. Four core is for multi-circuit runs. Twenty-one products, all drawn from the same class 5 copper.
Size follows the load, the run length, and how the cable is installed. Start with the calculator, or read the guide for the job you are wiring.
Enter the load and the run length, get the size.
Long run? Check the drop before you buy the coil.
Where stranded conductor wins, and where it does not.
The size and breaker for the most common AC in Pakistan.
Wire size and breaker for electric water heaters.
Cable plan and quantities for a full 5 marla build.
| Size (mm²) | Strands | R at 20°C (Ω/km) | Current, 2 core (A) | Current, 3 core (A) | Typical job |
|---|---|---|---|---|---|
| 0.75 | 24/0.20 | 26.0 | 6 | 6 | Appliance leads and light fittings |
| 1.5 | 30/0.25 | 13.3 | 19.5 | 17.5 | Lighting and fan circuits |
| 2.5 | 50/0.25 | 7.98 | 27 | 24 | Socket circuits, 1 ton AC |
| 4 | 56/0.30 | 4.95 | 36 | 32 | 1.5 and 2 ton AC, geyser, motor pump |
| 6 | 84/0.30 | 3.30 | 46 | 41 | Heavy single loads and long runs |
| 10 | 80/0.40 | 1.91 | 63 | 57 | Sub-main runs to distribution boards |
| 16 | 126/0.40 | 1.21 | 85 | 76 | Main incomer and heavy sub-mains |
Cable prices track the daily copper rate, so we quote the factory price on the day. Send the size, core count, length, and your city.
