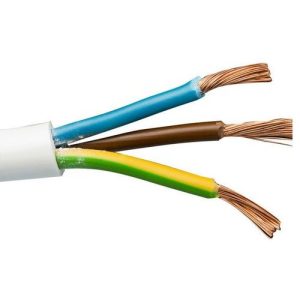

Three 0.75 mm² class 5 conductors — line, neutral and earth — 24 strands of 0.20 mm in each core, PVC insulated and sheathed to 300/500 V. 6 A with two loaded conductors on reference method C, about 1,320 W at 220 V. This is the tail a repair shop fits to a metal-bodied device that must keep its earth pin connected: bench tools, small fans, table appliances and earthed extension boards. Drawn on the Pilone line in Lahore.
Prices track the daily copper rate. Bulk and coil pricing on request.
Check the coil before you pay for it
Every coil leaves our factory with a QR code printed on the packaging. Scan it and the factory record for that batch opens: brand, cable size, batch number, year of manufacture and conductor. Compare the batch number on screen with the one printed on your coil — if the two do not match, it did not come from us.
| Property | Value |
|---|---|
| Conductor | Plain annealed copper, class 5 flexible stranded |
| Nominal area | 0.75 mm² × 3 cores |
| Strand construction | 24 / 0.20 mm per core (typical) |
| Max conductor resistance at 20°C | 26.0 Ω/km |
| Current capacity (method C, 2 loaded) | 6 A |
| Voltage drop | 62 mV/A/m |
| Voltage rating | 300/500 V |
| Insulation / sheath | PVC / PVC, 70°C conductor rating |
| Conductor copper weight | ≈ 20.1 kg/km (3 × 6.7 kg/km) |
| Reference standards | IEC 60228 (conductors), IEC 60227 (PVC cables) |
Re-tailing metal-bodied devices at the repair bench — table fans, mixers and small machines whose rating plate reads under 6 A.
Soldering stations, small hand tools and metal-bodied bench lamps that need the earth core carried through to the plug.
Three-pin multi-socket boards, where the earth pin has to stay live all the way back to the socket it plugs into.
Size it off the rating plate, not off how thick the cord looks. Watts ÷ 220 gives the amps: a 900 W appliance is 4.1 A and sits inside the 6 A this cable carries; a 1,500 W one is 6.8 A and does not — that job wants 1.5mm 3 core flexible cable at 17.5 A. Length is the second check and it rarely bites on a tail: 4 A over a 6 m lead drops 4 × 6 × 62 ÷ 1000 = 1.5 V, 0.7% of 220 V. Stretch that to a 20 m lead at the same 4 A and the drop is 5.0 V, 2.3% — still legal, but you are spending half the 5% budget on cord.
