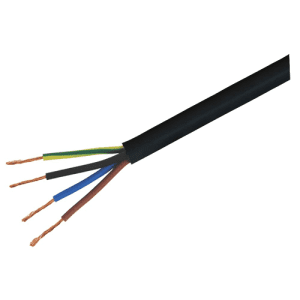

Four 0.75 mm² class 5 conductors, 24 strands of 0.20 mm in each core, PVC insulated and sheathed to 300/500 V. 6 A per core with three loaded, on reference method C. Nobody buys four cores at this size for power — they buy them for the fourth wire: panel builders running start, stop, common and a lamp down one sheath; crane and hoist pendants; multi-way switch drops on a lead that gets pulled every day. 62 mV/A/m, and on a low-voltage control loop that is the number that decides the size. Drawn on the Pilone line in Lahore.
Prices track the daily copper rate. Bulk and coil pricing on request.
Check the coil before you pay for it
Every coil leaves our factory with a QR code printed on the packaging. Scan it and the factory record for that batch opens: brand, cable size, batch number, year of manufacture and conductor. Compare the batch number on screen with the one printed on your coil — if the two do not match, it did not come from us.
| Property | Value |
|---|---|
| Conductor | Plain annealed copper, class 5 flexible stranded |
| Nominal area | 0.75 mm² × 4 cores |
| Strand construction | 24 / 0.20 mm per core (typical) |
| Max conductor resistance at 20°C | 26.0 Ω/km |
| Current capacity (method C, 3 loaded) | 6 A |
| Voltage drop | 62 mV/A/m |
| Voltage rating | 300/500 V |
| Insulation / sheath | PVC / PVC, 70°C conductor rating |
| Conductor copper weight | ≈ 26.8 kg/km (4 × 6.7 kg/km) |
| Reference standards | IEC 60228 (conductors), IEC 60227 (PVC cables) |
Start, stop, common and an indicator lamp in one sheath, from the panel down to a machine or a local station.
Pendant leads that hang, swing and get pulled all shift. Class 5 stranding is what survives that; solid conductor work-hardens and breaks.
Strappers and a common on a lead that has to move — sign boards, stage and display lighting, portable switch boxes.
On a control lead the deciding number is not the 6 A, it is the 62 mV/A/m against your circuit voltage. Take a 2 A coil or contactor on the far end. At 220 V the 5% allowance is 11 V, so 11 × 1000 ÷ (2 × 62) = 88 m of lead before you are out of budget — more than any pendant needs. Run the same 2 A on a 24 V control loop and 5% is 1.2 V: 1.2 × 1000 ÷ (2 × 62) = under 10 m. Same cable, same current, a ninth of the distance. If your control circuit is 24 V and the run is long, size on volt drop and step up to 1.5mm 4 core flexible cable at 29 mV/A/m, or check it on the voltage drop calculator.
