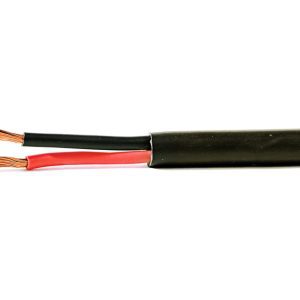

Two 0.75 mm² class 5 conductors, 24 strands of 0.20 mm in each core, PVC insulated and sheathed to 300/500 V. 6 A on reference method C — about 1,320 W at 220 V — and 62 mV/A/m, so on this size the run length bites before the load does. It is the cable lighting shops and appliance repairmen buy by the coil for lamp tails, LED fitting leads and light extension cords. Two cores means no earth. Drawn on the Pilone line in Lahore.
Prices track the daily copper rate. Bulk and coil pricing on request.
Check the coil before you pay for it
Every coil leaves our factory with a QR code printed on the packaging. Scan it and the factory record for that batch opens: brand, cable size, batch number, year of manufacture and conductor. Compare the batch number on screen with the one printed on your coil — if the two do not match, it did not come from us.
| Property | Value |
|---|---|
| Conductor | Plain annealed copper, class 5 flexible stranded |
| Nominal area | 0.75 mm² × 2 cores |
| Strand construction | 24 / 0.20 mm per core (typical) |
| Max conductor resistance at 20°C | 26.0 Ω/km |
| Current capacity (method C, 2 loaded) | 6 A |
| Voltage drop | 62 mV/A/m |
| Voltage rating | 300/500 V |
| Insulation / sheath | PVC / PVC, 70°C conductor rating |
| Conductor copper weight | ≈ 13.4 kg/km (2 × 6.7 kg/km) |
| Reference standards | IEC 60228 (conductors), IEC 60227 (PVC cables) |
Pendant lamps, LED panels and light fittings wired back to the rose or the driver, where the fitting has a plastic body and no earth terminal.
Two-pin extension leads for fans, chargers and TVs. Add up everything on the board, not just the biggest item — 6 A is the whole budget.
Re-tailing chargers, small plastic-bodied fans and bench electronics that leave the factory with a two-pin plug.
Two numbers set the limit and buyers usually check only the first. Heat: 6 A, which at 220 V is 220 × 6 = about 1,320 W for everything hanging on the end. Read the rating plate and divide the watts by 220 before you buy. Length: voltage drop is current × metres × 62 mV/A/m ÷ 1000. A 4 A load on a 15 m lead drops 4 × 15 × 62 ÷ 1000 = 3.7 V, which is 1.7% of 220 V and fine. Run the same cable at its full 6 A and the 5% BS 7671 allows on a power circuit — 11 V at 220 V — is spent at about 29 m. Past that distance the length picks the size, not the load: step up to 1.5mm 2 core flexible cable at 19.5 A and 29 mV/A/m.
