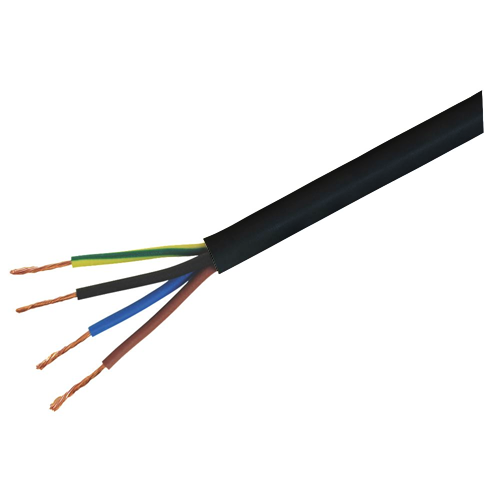

Four 4 mm² class 5 conductors in one flexible sheath — three phases and a neutral — 56 strands of 0.30 mm per core. 32 A with three loaded conductors, 4.95 Ω/km, 300/500 V. This is the tail between a fixed panel and a three-phase machine: the last few metres that bend into a gland, take the vibration, and get re-coiled when the machine moves. About 22 kVA at 400 V. Made on the Pilone line in Lahore.
Prices track the daily copper rate. Bulk and coil pricing on request.
Check the coil before you pay for it
Every coil leaves our factory with a QR code printed on the packaging. Scan it and the factory record for that batch opens: brand, cable size, batch number, year of manufacture and conductor. Compare the batch number on screen with the one printed on your coil — if the two do not match, it did not come from us.
| Property | Value |
|---|---|
| Conductor | Plain annealed copper, class 5 flexible stranded |
| Nominal area | 4 mm² × 4 cores |
| Strand construction | 56 / 0.30 mm per core (typical) |
| Max conductor resistance at 20°C | 4.95 Ω/km |
| Current capacity (method C, 3 loaded) | 32 A |
| Voltage drop | 11 mV/A/m |
| Voltage rating | 300/500 V |
| Insulation / sheath | PVC / PVC, 70°C conductor rating |
| Conductor copper weight | ≈ 142 kg/km (4 × 35.6 kg/km) |
| Reference standards | IEC 60228 (conductors, class 5), IEC 60227 (PVC flexible cables) |
Two buyers keep this size moving: the workshop wiring a three-phase machine that gets repositioned, and the panel builder making up a tail from a starter to a motor. Both are buying one jacket instead of four singles: three phases and a neutral land in a single gland, and the class 5 copper turns into that gland without springing back out of it. 32 A with three loaded conductors, clipped direct at 30°C, is about 22 kVA on a 400 V supply (1.732 × 400 × 32 ÷ 1000). That covers a small lathe, a compressor or a submersible starter. Size on the full-load amps printed on the machine plate, not the horsepower on the box, and remember a cable left coiled on its drum carries less than the same cable run out flat.
Isolator to a lathe, mixer or press that gets repositioned — the last metres that have to bend into the gland and stay bent.
Starter to a three-phase motor. Class 5 stranding takes the vibration; a class 2 conductor work-hardens and cracks inside the insulation.
Site boards and movable equipment that get dragged out and re-coiled between jobs.
Worked example, using the numbers in the table above. A machine whose plate reads 10 A, on a 15 m tail from the panel: 10 × 15 × 11 ÷ 1000 = 1.7 V of drop, against the 20 V that BS 7671's 5% allows on a 400 V power circuit — under a tenth of the budget, which is normal for a tail. At the cable's full 32 A that 20 V arrives at 20000 ÷ (32 × 11) = 57 m. Tails are rarely that long, so on this cable heat and coiling set the limit rather than distance. Check your own run with the voltage drop calculator.
