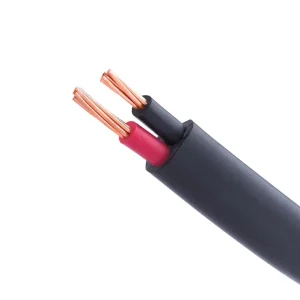

The size an electrician reaches for when a single-phase circuit has outgrown 6mm²: an instant geyser, a ducted AC point, a kitchen carrying an oven and a hob on one feed, or a short submain to a floor board. Two 10mm² class 2 conductors, 7 strands of 1.35 mm each — the build the trade still orders as 7/.052 — carrying 63 A on two loaded conductors at 450/750 V, 1.83 Ω/km, 4.4 mV/A/m. Drawn on the Pilone line in Lahore.
Prices track the daily copper rate. Bulk and coil pricing on request.
Check the coil before you pay for it
Every coil leaves our factory with a QR code printed on the packaging. Scan it and the factory record for that batch opens: brand, cable size, batch number, year of manufacture and conductor. Compare the batch number on screen with the one printed on your coil — if the two do not match, it did not come from us.
| Property | Value |
|---|---|
| Conductor | Plain annealed copper, class 2 stranded |
| Nominal area | 10 mm² × 2 cores |
| Strand construction | 7/1.35 mm per core (typical) |
| Max conductor resistance at 20°C | 1.83 Ω/km |
| Current capacity (method C, 2 loaded) | 63 A |
| Voltage drop | 4.4 mV/A/m |
| Voltage rating | 450/750 V |
| Insulation / sheath | PVC / PVC, 70°C conductor rating |
| Conductor copper weight | ≈ 178 kg/km (2 × 88.9 kg/km) |
| Reference standards | IEC 60228 (conductors), IEC 60227 (PVC cables) |
Worked example, from the voltage-drop figure in the table. A 50 A feed to a sub-board, run 20 m from the main panel, loses 50 × 20 × 4.4 ÷ 1000 = 4.4 V — 2% of a 220 V supply, inside the 5% BS 7671 allows on a power circuit, which is 11 V here. Load the cable to its full 63 A and that 11 V is spent at about 40 m: 11 ÷ (63 × 4.4 ÷ 1000) = 39.7 m. Beyond that it is the metres deciding the size, not the amps — the same 63 A on 16mm 2 core cable at 2.8 mV/A/m reaches 11 V at about 62 m.
One heavy appliance on its own breaker, where 6mm² at 46 A leaves no headroom. Read the rating plate, then size the breaker to it.
A single feed to a kitchen board carrying oven, hob and water heater together, rather than three long runs from the main panel.
A short single-phase submain from the main panel to a floor board, a servant quarter or a shop front, inside the 40 m the drop allows at full load.
